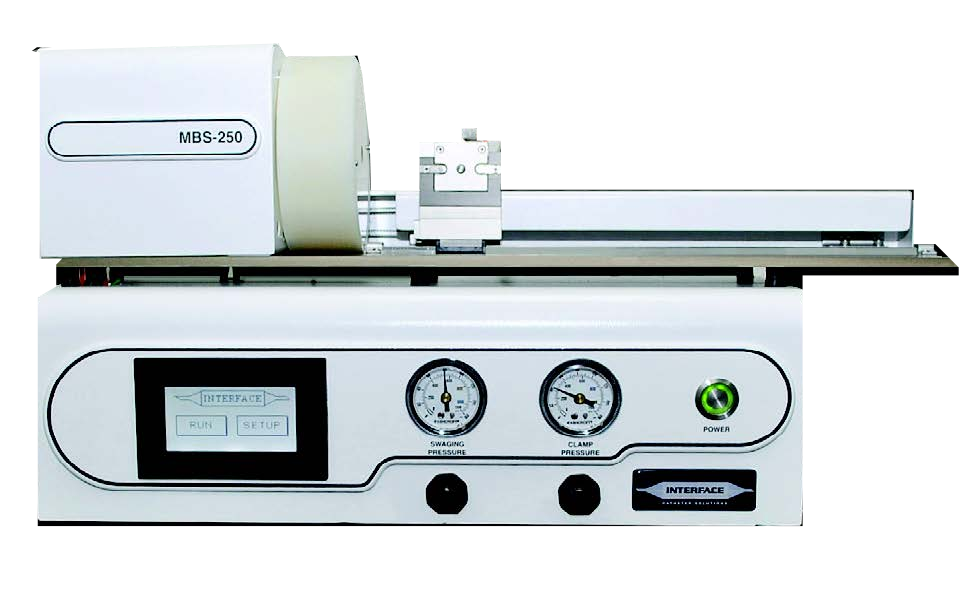

MBS-250 Marker Band Swager
The Interface Catheter Solutions MBS-250 Marker Band Swager is compact and clean-room ready with 360° swaging performance for gradual and smooth diameter reduction of marker bands for catheter production. The swaging equipment offers superior performance and no striations or deformations to the swaged parts.
Key Features
- High-quality swaging operation for no striations or deformations to the swaged parts
- Improve setup, wear and maintenance with one-piece die design
- Increase capabilities for distance between marker bands
- Smallest footprint available on the market, clean-room ready and easy-to-use
Specifications
| Dimensions: | 21.12” W x 11.75” H x 6.75” D 536.5 mm x 298.45 mm x 171.45 mm |
| Weight: | 15.15 lbs (6.87 kg) |
| Die Material: | Heat-treated stainless steel |
| Power Requirements: | 24 VDC @ 1950 mA maximum 47 W |
| Air Supply: | 100-120 psi (6.9 – 8.3 bar) |
| Standard Mode: | 2 marker bands |
| Single Mode: | Multiple marker bands |
| Swaging Die Sizes: | Custom size diameters ranging from 0.020” to 0.188”, 0.5 mm to 4.78 mm (1.5 Fr to 14 Fr) |
| Die Rotation Speed (continuous): | ~ 0.5 rotations / second |
| Hammer Frequency: | 5 to 30 Hz (10 to 60 strokes at 2 seconds per revolution) |
| Auto-feed Clamp Speed: | 0.1 mm/s to 20 mm/s |
| Distance Between Marker Bands: | Up to 250 mm |
| Rotation: | 360° |
| Noise Level: | Less than 77 dBA |
| Standard Model: Part #727023-10 (10 mm cylinder bore) | Up to 0.066”, 1.67 mm (5 Fr) and marker band wall thickness > 0.002”, 0.051 mm |
| High Force Model: Part #727023-15 (15 mm cylinder bore) | Up to 0.184”, 4.7 mm (14 Fr) and marker band wall thickness > 0.002”, 0.051 mm |
| One-Piece Die: | Part #506054-TBD |
