Split Mold Balloon Forming Machine - BFMS-500-S2

Description

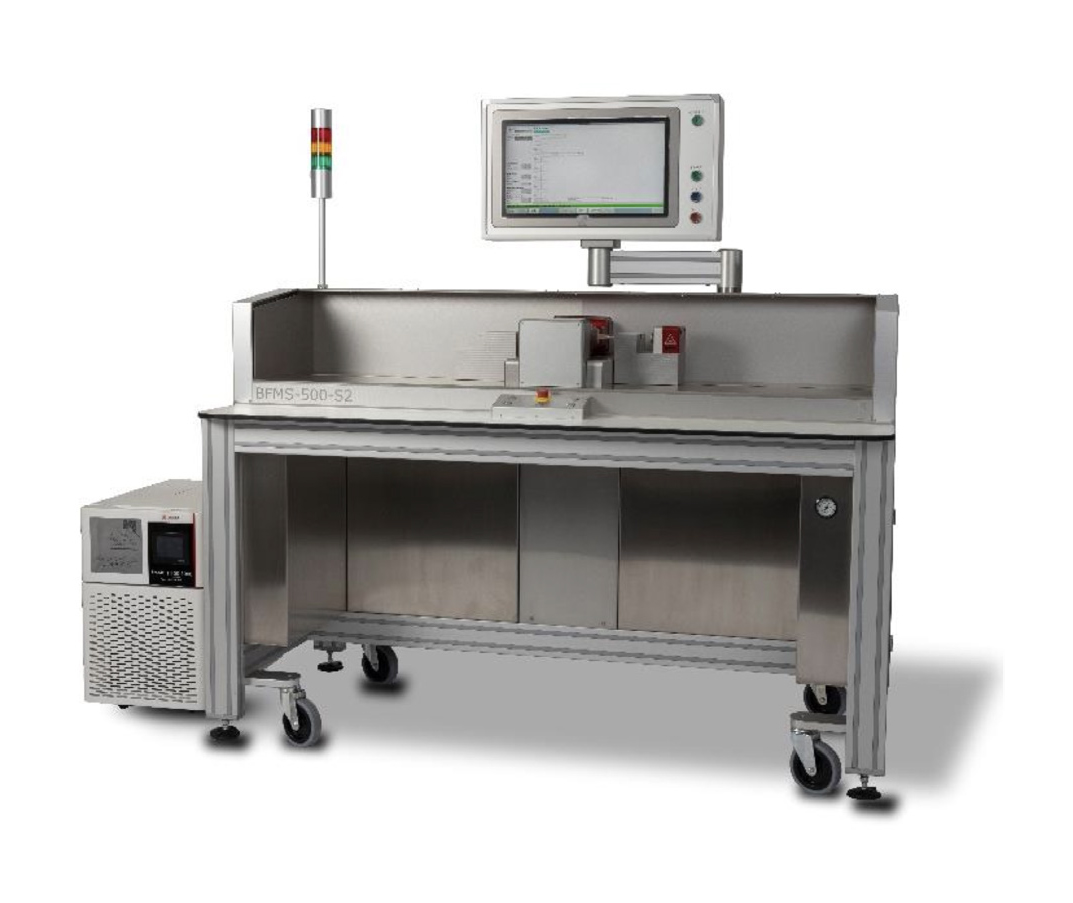

The Split Mold Balloon Forming Machine (BFMS-500- S2) has full servo control on the proximal and distal axis. This allows for precise and fast stretching of the parisons during the balloon-blowing process. The axis has force control and individual loadcell systems allowing forces to be monitored and used as control parameters during the process. Our BFMS allows you quickly exchange the heat/cool block for a different size/shape balloon.



Available Options: Integrated High-Pressure Generation • Active Pressure Drop Control (APDC) • Parison Pre-Heating

Specifications

  • Flexible Process Interface for virtual limitless process cycle options on large 19” full color touch panel interface.
  • Fast and strong full servo-controlled axis for repeatable and reliable stretching of the parison materials during the forming process.
  • Optional High-Pressure system integrated eliminating the need for a high-pressure factory network or the use of N2-bottles.
  • Large 19” full color touch screen user interface for easy overview of the machine behaviour.
  • Standalone Flexible Process Interface software package available for off-line development of processes.
Request A Quote
Download Brochure

Technical Specs

TECHNICAL SPECIFICATION

BFMS-500-S2

Stretch force

500 N max

Stretch speed

250 mm/s max. (servo controlled)

Stretch acceleration

2000 mm/s2

Stretch length

500 mm proximal and 500 mm distal

Clamping

Self-aligning high force distal and proximal clamps

Inflation pressure

1-50 bar max +/- 0.2%

Pressure control

Active Pressure Drop Control (APDC)

Temperature heating system

20 °C – 220 °C +/- 0.5 °C

Preheat system

Proximal preheating system

Mold diameter

Up to 50 mm

Block lengths

80 mm, 120 mm, 160 mm, 200 mm & other sizes possible

GUI

19” color touch panel

Control software

Flexible Process Interface (FPI)

Zoomable process graphs with process markers

Recipe-based password levels (operator, engineer, calibrator)

External FPI software available for off-line development

Remote support option

Indicators

Optional signal light / acoustic alarm (user programmable)

Ethernet

2x

USB

4x

Required air pressure

7 bar minimum (pre-dried in case of integrated pressure boosting system)

N2 system

Using external N2 system (bottles or factory line) / optional high-pressure generator system require 7 bar feed pressure with internal 1L high-pressure buffer vessel

Power supply

115 or 240 VAC / 2kW

Cooling circuit

Cooler with 5L reservoir + temperature and level detection
