Accu-Tip ATG: Automated Tip Grinder
The medical Automated Tip Grinder (ATG) grinds nitinol and stainless steel wires, as well as polymer tubing and rod on a compact grinding stand. Built specifically to meet the tight-tolerance requirements of medical device applications, this medical device precision grinder’s specially-designed vision system allows the operator to detect bad parts for automated sorting and view the grinding process on a monitor. The fully-automated process is programmable using the color LCD touchscreen and secure, easy-to-use SYNEO software.
Key Features
- Full-color, touch-screen HMI
- Recipe-driven software with barcode reader integration capability
- Consistent and repeatable tip finishes and profiles

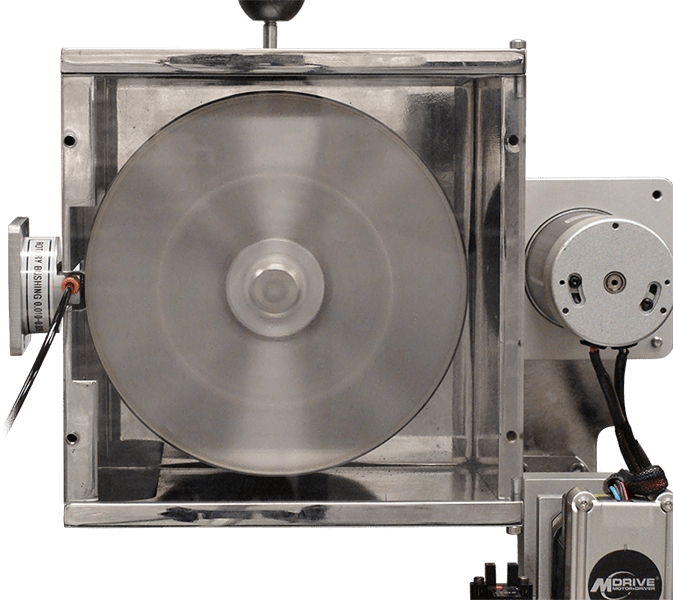

- Multi-grooved grind wheels provide programmable tip variations without tooling changeouts
- This nitinol tip grinder has a machined wheel with abrasive plating does not need to be dressed
- Suitable for NiTi and Stainless Steel Wire grinding and Polymer grinding applications
- Features SYNEO’s Accu-Feed LTD, Accu-Test inspection module and Accu-Bin Pass/Fail binning capability for unattended operations.
Specifications
- Power: 100-230 VAC, 50/60 Hz
- Air requirements: 30-100 PSI, 1-5 CFM
- Dimensions (W x D x H): 18″ x 18″ x 42″ (grinding pedestal only)
- Weight (standard machine): 50 lbs. (grinding pedestal only)
- Shipping weight (standard machine): 100 lbs. (grinding pedestal only)
- HMI: 7″ high resolution color touchscreen
- CE certified model available
Materials
- Straight Lengths (Sticks) of Polymer Tubing
- Straight Lengths (Sticks) or spools of nitinol and stainless steel wire
- Straight Lengths (Sticks) or spools of NiTi or stainless steel coils
